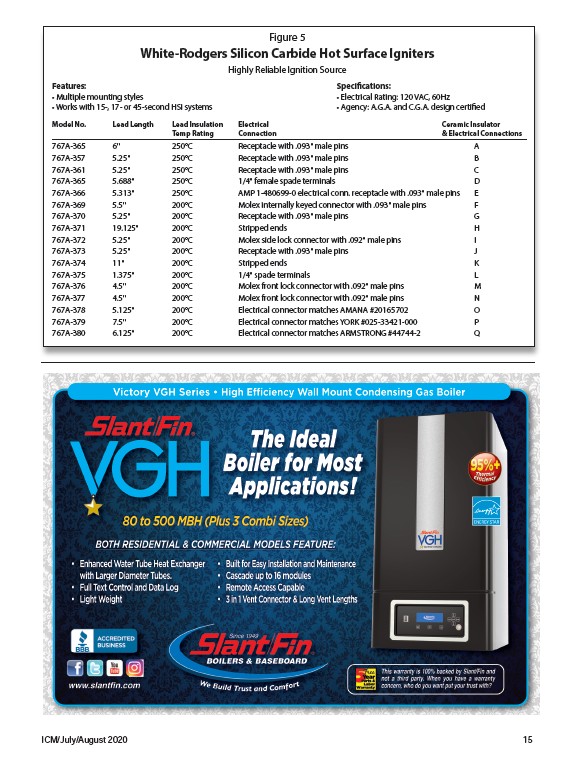

Figure 5
White-Rodgers Silicon Carbide Hot Surface Igniters
Highly Reliable Ignition Source
Features: Specifications:
• Multiple mounting styles • Electrical Rating: 120 VAC, 60Hz
• Works with 15-, 17- or 45-second HSI systems • Agency: A.G.A. and C.G.A. design certified
Model No. Lead Length Lead Insulation Electrical Ceramic Insulator
Temp Rating Connection & Electrical Connections
767A-365 6" 250°C Receptacle with .093" male pins A
767A-357 5.25" 250°C Receptacle with .093" male pins B
767A-361 5.25" 250°C Receptacle with .093" male pins C
767A-365 5.688" 250°C 1/4" female spade terminals D
767A-366 5.313" 250°C AMP 1-480699-0 electrical conn. receptacle with .093" male pins E
767A-369 5.5" 200°C Molex internally keyed connector with .093" male pins F
767A-370 5.25" 200°C Receptacle with .093" male pins G
767A-371 19.125" 200°C Stripped ends H
767A-372 5.25" 200°C Molex side lock connector with .092" male pins I
767A-373 5.25" 200°C Receptacle with .093" male pins J
767A-374 11" 200°C Stripped ends K
767A-375 1.375" 200°C 1/4" spade terminals L
767A-376 4.5" 200°C Molex front lock connector with .092" male pins M
767A-377 4.5" 200°C Molex front lock connector with .092" male pins N
767A-378 5.125" 200°C Electrical connector matches AMANA #20165702 O
767A-379 7.5" 200°C Electrical connector matches YORK #025-33421-000 P
767A-380 6.125" 200°C Electrical connector matches ARMSTRONG #44744-2 Q
