get the igniter to glow and then reading the microamps
created by the flame to igniter/sensor using the equipment
burner as ground.
Figure 1 (previous page) was developed by the author
of this article. It includes a list of parts needed to make
the switch tester and the wiring to get the switch to
work. Figure 3 (see page 14) shows microamp check with
a separate sensor.
Hot Surface Igniters Replacements
The distributor for Norton (Coorstek) Igniters is Robertshaw
Controls Co. They can be found in the latest
Robertshaw Catalogs under the Uni-Line 41-400 catalog
series for the Norton (Coorstek) 201 and 271 igniters. It
should be pointed out that the igniters that are offered
in the catalog are all 17-second warm-up time igniters
(Norton 271) with one exception, which is the Norton 201
C (Robertshaw 41-413) used on the Carlin Gas Conversion
burner only.
The Mini-igniters from Norton (Norton 601 series) are
carried under the Robertshaw catalog series 41-600.
It should be noted that the basic difference between
igniters is the ceramic base and the mounting brackets.
This makes for some difficulty in using them interchangeably
and this is not recommended. It is possible that the
mated plug on the lead wires may not match up with the
unit being replaced. In that case, the wires can be cut and
wire nuts can be used to join the wires.

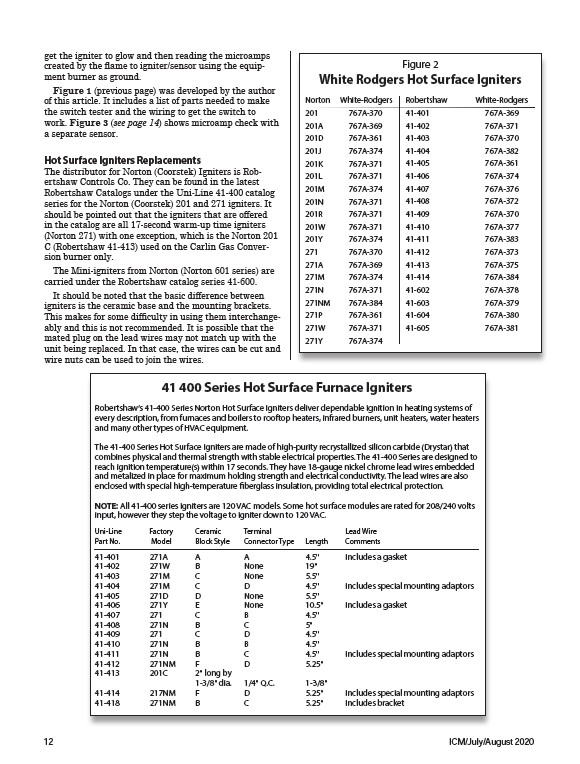

Figure 2
White Rodgers Hot Surface Igniters
Norton White-Rodgers
201 767A-370
201A 767A-369
201D 767A-361
201J 767A-374
201K 767A-371
201L 767A-371
201M 767A-374
201N 767A-371
201R 767A-371
201W 767A-371
201Y 767A-374
271 767A-370
271A 767A-369
271M 767A-374
271N 767A-371
271NM 767A-384
271P 767A-361
271W 767A-371
271Y 767A-374
Robertshaw White-Rodgers
41-401 767A-369
41-402 767A-371
41-403 767A-370
41-404 767A-382
41-405 767A-361
41-406 767A-374
41-407 767A-376
41-408 767A-372
41-409 767A-370
41-410 767A-377
41-411 767A-383
41-412 767A-373
41-413 767A-375
41-414 767A-384
41-602 767A-378
41-603 767A-379
41-604 767A-380
41-605 767A-381
41 400 Series Hot Surface Furnace Igniters
Robertshaw’s 41-400 Series Norton Hot Surface Igniters deliver dependable ignition in heating systems of
every description, from furnaces and boilers to rooftop heaters, infrared burners, unit heaters, water heaters
and many other types of HVAC equipment.
The 41-400 Series Hot Surface Igniters are made of high-purity recrystallized silicon carbide (Drystar) that
combines physical and thermal strength with stable electrical properties. The 41-400 Series are designed to
reach ignition temperature(s) within 17 seconds. They have 18-gauge nickel chrome lead wires embedded
and metalized in place for maximum holding strength and electrical conductivity. The lead wires are also
enclosed with special high-temperature fiberglass insulation, providing total electrical protection.
NOTE: All 41-400 series igniters are 120 VAC models. Some hot surface modules are rated for 208/240 volts
input, however they step the voltage to igniter down to 120 VAC.
Uni-Line Factory Ceramic Terminal Lead Wire
Part No. Model Block Style Connector Type Length Comments
41-401 271A A A 4.5" Includes a gasket
41-402 271W B None 19"
41-403 271M C None 5.5"
41-404 271M C D 4.5" Includes special mounting adaptors
41-405 271D D None 5.5"
41-406 271Y E None 10.5" Includes a gasket
41-407 271 C B 4.5"
41-408 271N B C 5"
41-409 271 C D 4.5"
41-410 271N B B 4.5"
41-411 271N B C 4.5" Includes special mounting adaptors
41-412 271NM F D 5.25"
41-413 201C 2" long by
1-3/8" dia. 1/4" Q.C. 1-3/8"
41-414 217NM F D 5.25" Includes special mounting adaptors
41-418 271NM B C 5.25" Includes bracket
